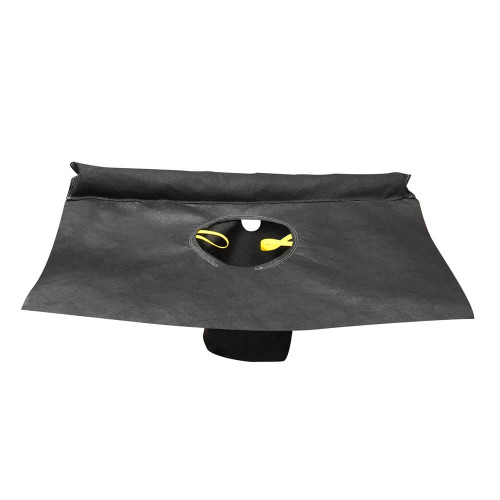

Storm Sentinel® Curb Inlet Filter with Frameless Catch Basin Insert, Black

Country of Origin USA
Material Non-Woven Geotextile
Top Apron Dimensions (LxW) in. (cm.) 36x48 (91x122)
Cone Depth in. (cm.) 18 (45)
Curb Deflector Diameter in. (cm.) 5 (12.7)
Curb Deflector Length in. (cm.) 48 (121)
Weight lbs. (kg.) 7 (3.2)
Load Capacity lbs. (kg.) 40 (18)
Flow Rate gal. (L.)/min./sqft. 90 (340)
Regulations EPA 40 CFR 122.26, SPCC, NPDES
UPC Code 705340015522
UPC:
705340015522

The Curb Basin Insert combines the Frameless Catch Basin Insert with a Curb Inlet Filter to make the perfect Storm Sentinel® to prevent harmful pollutants from washing into storm drains. Storm water is filtered through the coiled filter of the curb inlet, while the catch basin insert filters pollutants entering the drop inlet. Double the filtration in one product!

  • Frameless catch basin - cut the fabric to size
  • Easy installation and removal
  • Catch basin sits below the grate to be low-profile and unobtrusive
  • Geotextile fabric prevents contaminated sediment from washing into the drain
  • Standard versions feature overflow bypass ports for high-flow storm events, preventing storm water backup around drains
  • Reusable until product no longer maintains adequate water flow
  • No special tools required for installation
  • Complies with regulations when used in Storm Water Pollution Prevention Plans
