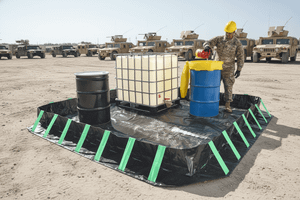

The Ultra-Containment Berm, Compact Model provides heavy-duty and versatile spill containment for tanker trucks, drums, generators, IBCs, frac tanks and other equipment and containers. The sidewalls set up quickly and easily and can be driven over without being damaged.
- Compact, lightweight, portable design - no inflation required.
- Protects heavy equipment from spills during filling, discharging, cleaning and maintenance.
- Smaller sizes provide total containment of drums, tanks, generators, compressors and other equipment prone to leaks and spills.
- Sidewalls lower quickly to allow drive in / drive out.
- Withstands the rigors of industrial and construction applications.
- Custom Sizes Available.
- Available in XR5.
| Part Number | Containment Dimensions LxWxH ft. (m.) |
Weight lb. (kg.) |
Spill Capacity gal. (L.) |
| 8609 | 4x6x1 (1.2x1.8x0.3) | 34 (15.4) | 179 (677.6) |
| 8610 | 6x6x1 (1.8x1.8x0.3) | 39 (17.7) | 269 (1018.3) |
| 8611 | 10x10x1 (3x3x0.3) | 72 (32.7) | 748 (2831.5) |
| 8680 | 10x20x1 (3x6.1x0.3) | 146 (66.2) | 1496 (5663) |
| 8681 | 10x30x1 (3x9.1x0.3) | 201 (91.2) | 2244 (8494.5) |
| 8682 | 10x40x1 (3x12.2x0.3) | 257 (116.6) | 2992 (11326) |
| 8683 | 10x50x1 (3x15.2x0.3) | 312 (141.5) | 3740 (14157.4) |
| 8684 | 12x12x1 (3.7x3.7x0.3) | 111 (50.3) | 1077 (4076.9) |
| 8685 | 12x20x1 (3.7x6.1x0.3) | 158 (71.7) | 1795 (6794.8) |
| 8686 | 12x30x1 (3.7x9.1x0.3) | 216 (98) | 2692 (10190.3) |
| 8687 | 12x40x1 (3.7x12.2x0.3) | 274 (124.3) | 3590 (13589.6) |
| 8688 | 12x50x1 (3.7x15.2x0.3) | 333 (151) | 4488 (16988.9) |
| 8612 | 12x60x1 (3.7x18.3x0.3) | 335 (152) | 5385 (20384.4) |
| 8689 | 15x15x1 (4.6x4.6x0.3) | 147 (66.7) | 1683 (6370.8) |
| 8690 | 15x20x1 (4.6x6.1x0.3) | 179 (81.2) | 2244 (8494.5) |
| 8691 | 15x30x1 (4.6x9.1x0.3) | 243 (110.2) | 3366 (12741.7) |
| 8692 | 15x40x1 (4.6x12.2x0.3) | 306 (138.8) | 4488 (16988.9) |
| 8613 | 15x50x1 (4.6x15.2x0.3) | 317 (143.8) | 5610 (21236.2) |
| 8614 | 15x66x1 (4.6x20.1x0.3) | 404 (183.3) | 7405 (28031) |
